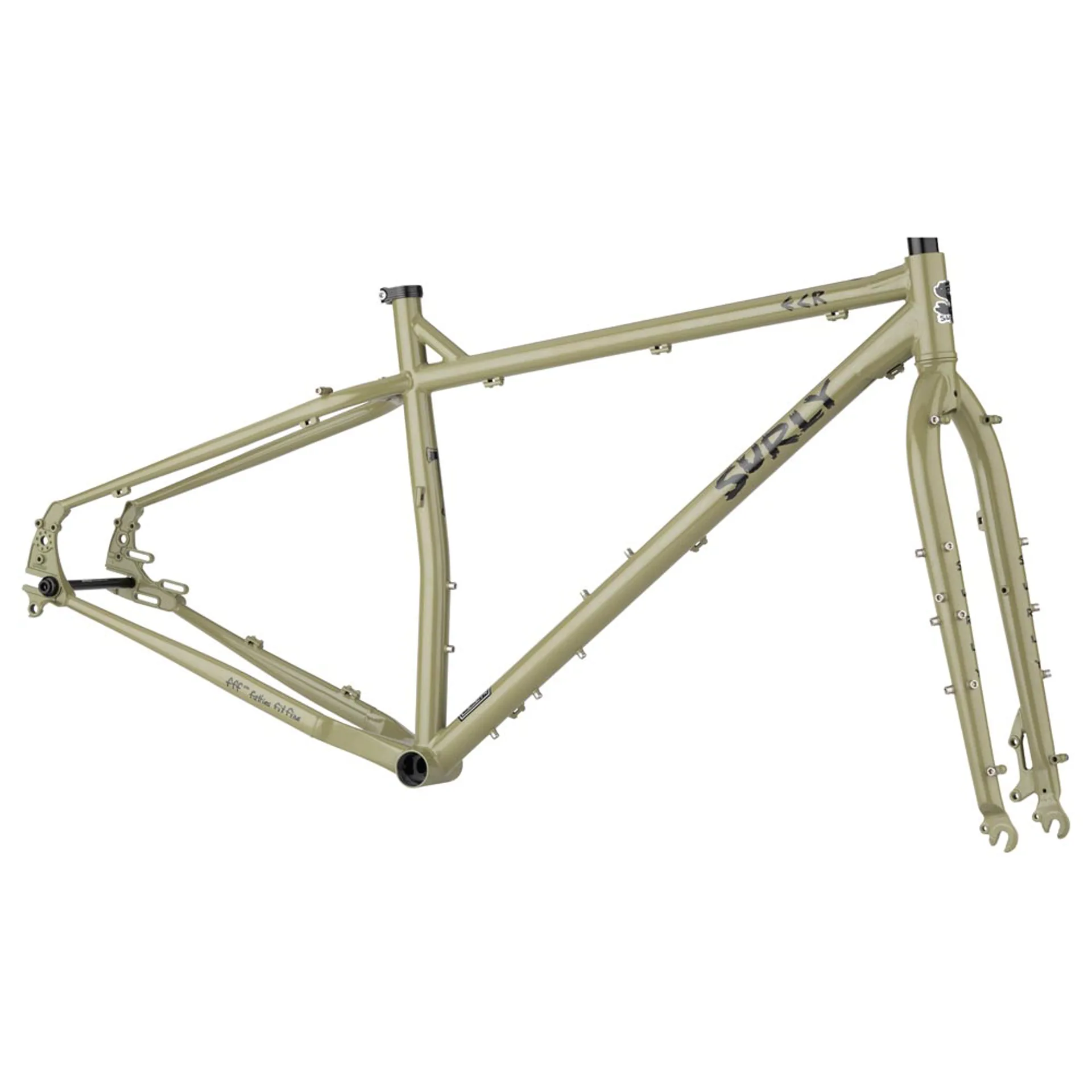

Surly ECR 27.5 Frameset in Green

Season:2020

Brand:Surly - Bikes/Frames

Code:fmsu-ecr20-27-grnTankGRN

Our go-to Bikepacking bike

Sometimes the only way to break the humdrum of life is with a bike ride off the beaten path. Sometimes just for a quick overnighter, sometimes a month and half fully-loaded through nine countries. ECR is our answer to those sometimes.

As our flagship bikepacking rig, ECR is adaptable to frame bags for the minimalist approach, as well as racks and bags to maximize gear-hauling potential. ECR is most at home when your tour starts on dirt and gets more technical from there.

Technical Information
  • Frame Construction
    4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction
    4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Rear Dropout Configuration
    Horizontal slotted with optional vertical dumpout
  • Rear Hub Spacing
    Gnot-Boost 145mm
    12 x 142mm or 12 x 148mm (axle is included)
    10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Front Hub Spacing
    10 x 100mm
  • Rear Brake
    Disc - 51mm I.S. (160mm max rotor) [5]
  • Front Brake
    Disc - 51mm I.S. (203mm max rotor)
  • Head Tube
    Ø34mm
  • Steerer Tube
    Ø28.6mm (1-1/8")
  • Crown Race
    Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.)
    EC34/28.6
  • Stock Headset Lower (S.H.I.S.)
    EC34/30
  • Seat Collar
    Ø30mm
  • Seatpost
    Ø27.2mm
  • Front Derailleur (Clamp)
    High direct mount top-pull (Ø28.6mm)
    26mm offset adapter (not included) for 142 or 135mm rear hub spacing
    29mm offset adapter (not included) for 148mm rear hub spacing
  • Max Chainring (CL)[3]
    1x (Mtn): 34T
    2x (Mtn): 26/39T
    3x (Mtn): 22/34/44T
  • Bottom Bracket
    73mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame [1]/[2]
    27.5+: 27.5 x 3.0" (with or without fenders)
    27.5+: 29 x 2.6" (with or without fenders)
    29+: 29 x 3.0" (with or without fenders)
  • Tire Clearance Fork [1]
    27.5+: 27.5 x 3.0" (without fenders)
    27.5+: 27.5 x 2.8" (without fenders)
    27.5+: 29 x 2.6" (without fenders)
    27.5+: 29 x 2.5"(with fenders)
    29+: 29 x 3.0" (with or without fenders)
  • Rigid Fork Spec
    27.5in: 447 x 43mm
    29in: 468 x 43mm
  • Max Suspension Fork Length [4]
    N/A
  • Bottle Mounts Frame
    27.5in: 2 Three-Pack
    29in: 2 Standard + 1 Three-Pack
  • Bottle Mounts Fork
    27.5in: 4 Three-Pack
    29in: 4 Three-Pack
  • Rack Mounts Frame
    Yes (upper and lower threaded)
  • Rack Mounts Fork
    Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame
    Yes
  • Fender Mounts Fork
    Yes
  • Other Features
    Dedicated Rohloff cable routing and mount for OEM 2 axle plate
    Dedicated Surly Trailer mounts

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag).
[5] Rear disc brake requires Surly’s proprietary brake mount adapter.
